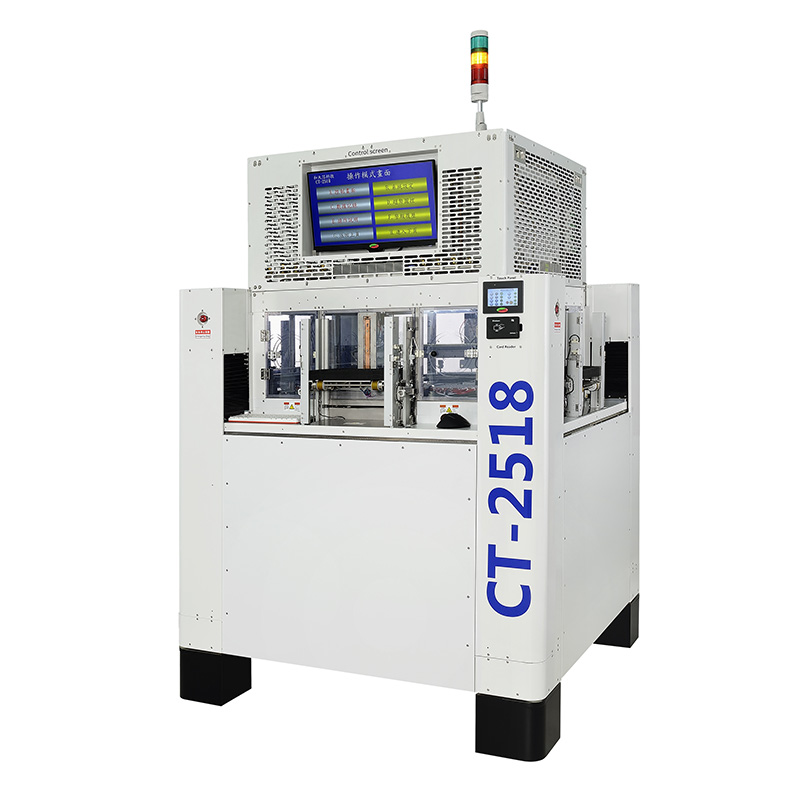

| Items | Specification |
|---|---|
| Handler Body Dimension & Weight | 1400mm(W) × 1400mm(D) × 2100mm(H) |
| Max. Dimension Of Test Area | 980mm(W) × 980mm(D) × 360mm(H) |
| Weight | Approx. 950kg |
| Test Site Opening | 195 x 145mm |
| Docking Type | Vertical Docking |
| Power Requirement | Single-phase AC220V / 30A x 2, 50/60Hz, ±10%, Max. 13.2KVA (Including ATC) |
| Tester Interface | GPIB, Option : RS232 / TTL / SECS-GEM |
| Applicable | QFP, TQFP, CSP, PLCC, QFN, BGA, LGA, PGA, TSOP, SOC, InFO… |
| Device Dimensions | Device body outside : 3 × 3 ~ 60 × 60mm (or customize) |
| Test Site Pitch | 2 × 3 : X=60mm Y=60mm |
| Max. Throughput | 200~2000pcs/hr. |
| Jam Rate | Approx. 16,000 units |
| Index Time | Approx. 1~2sec |
| Applicable Tray | JEDEC |
| Tray Loader / Unloader Capacity | Input tray : with 220mm stroke Output tray : with 220mm stroke |
| Tray Arm Type | Catch mode |
| Operating Mode | On-line Mode : Automatic mode with tester link Off-line Mode : Automatic mode without tester link |
| Kit Exchange Time | Approx. < 15min |
| Socket Height | 150mm |
| Contact | Direct contact / Drop |
| Binning | 4 Bins (Base on JEDEC trays) Auto tray unloader x 4 ; Fix tray x 4 Bin extension station (Option, up to 30Bins) |
| Heating Method | ATC 8.0 System + Heater |
| Contact Force | Up to 480kgf |
| ESD Ability | Ionizer bar x 2, Ionizer gun x 4 1KV > 100V within 2.5sec, Balance ±20V |
| Dry Air | 5kg/cm2 dry and clean air consumption more than 250L/min |
| ATC Temperature |
Setting range : TC -70~185℃ , Accuracy=±1℃ (Full range Active Thermal Control) Work range : TC -60~175℃ , Stability=±2℃ (At -50℃ applications require equipment side to provide dry air of -60℃) Heat dissipation : Single site -55℃@50W, 25℃@180W, 100℃@300W Temperature rising time : -55~175℃→ less 10min, 175~-55℃→30min |
| Facility Total Water Flow | 3/8" UNF, Pressure 2.5~4.5kg/cm2, Flow 50L/min, Temp 13~18℃ (Selectivity) |
| Air Cooling Or Water Cooling (Selectivity) | Support |
| AGV (Automated Guided Vehicle) | Support (Self-developed) |
| OHT (Overhead Hoist Transfer) | Support (Self-developed) |
